ESD Embossed Carrier Tape for SMD Components with Custom Pitch and Pocket Depth
Precision SMD Carrier Tape with Custom Pocket Design
The Precision SMD Carrier Tape is developed for electronic components that require accurate positioning during handling and packaging. Its formed pockets are designed around the dimensions of individual components, helping separate and protect each part while maintaining consistent placement.
The carrier tape can be configured with different tape widths, pocket dimensions, pitch and pocket depths, making it suitable for components with different shapes and sizes. The pocket geometry can be adjusted according to the customer's component drawings or packaging requirements.
Different material options can also be selected according to the intended application, including requirements related to ESD protection, transparency, mechanical strength and component compatibility.
The product is suitable for a wide range of SMD components, including resistors, capacitors, LEDs, ICs, connectors and semiconductor devices.
| Item |
Specification |
| Product Name |
Precision SMD Carrier Tape |
| Product Type |
Embossed / Thermoformed Carrier Tape |
| Material |
Plastic |
| Tape Width |
8mm / 12mm / 16mm / 24mm / Customized |
| Pocket Dimension |
Customized |
| Pocket Depth |
Customized |
| Pitch |
Customized |
| Color |
Black / Clear / Customized |
| ESD Option |
Available |
| Component Compatibility |
SMD / SMT Components |
| Typical Components |
Resistors, Capacitors, LEDs, ICs, Connectors |
| Design Method |
Based on Component Dimensions or Drawing |
| Cover Tape Compatibility |
Available |
| Reel Compatibility |
Available |
| OEM / Customization |
Available |
|
|

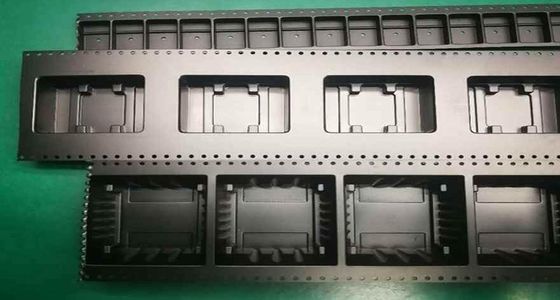

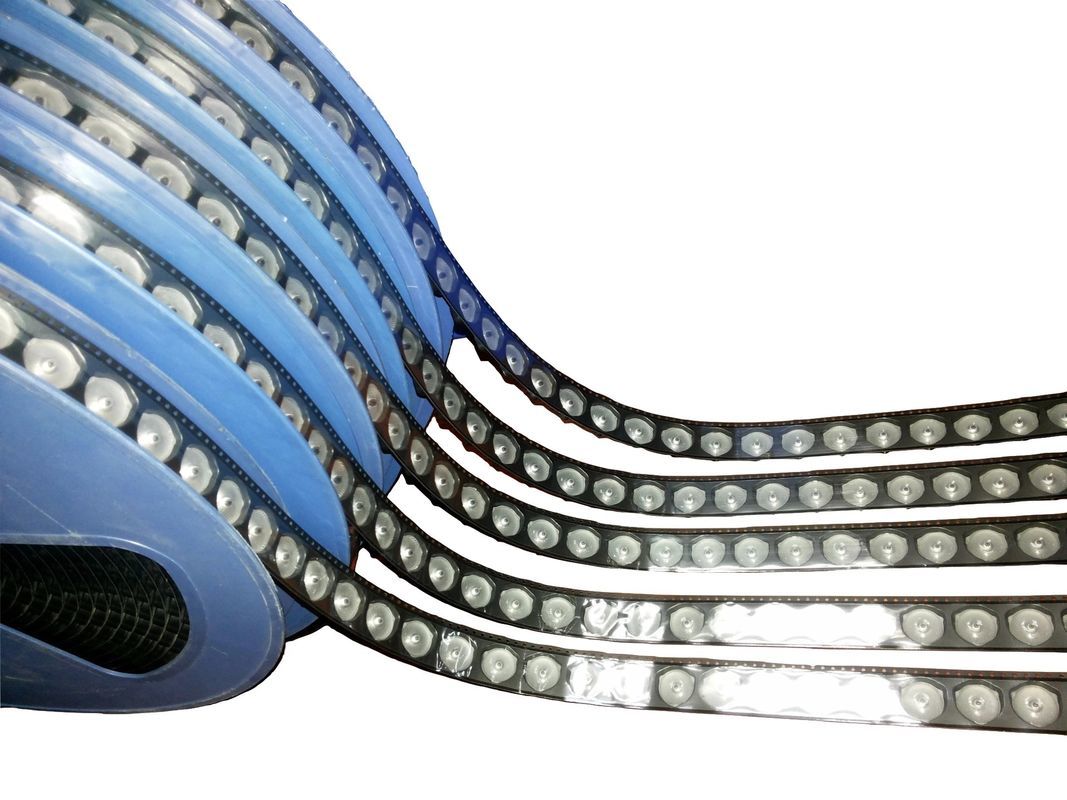

Precision SMD Carrier Tape with Custom Pocket Dimensions for Electronic Components Images
|
